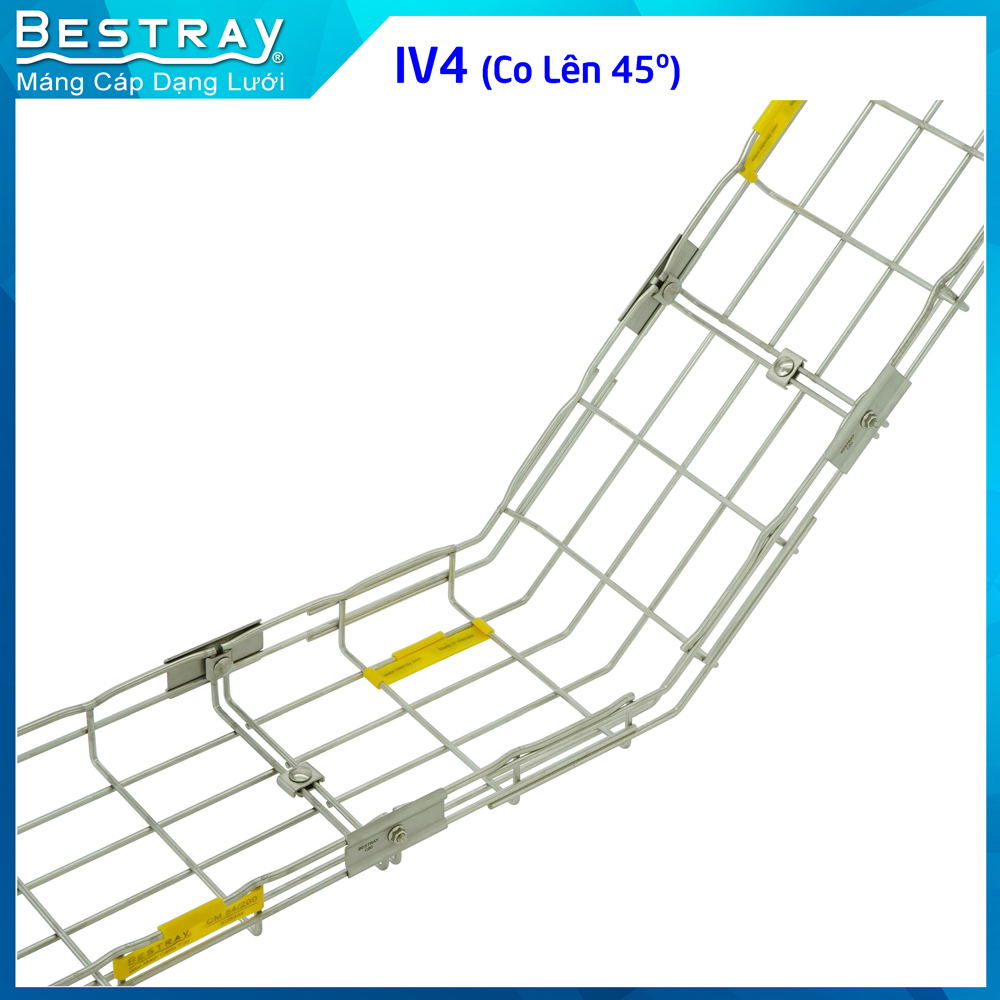

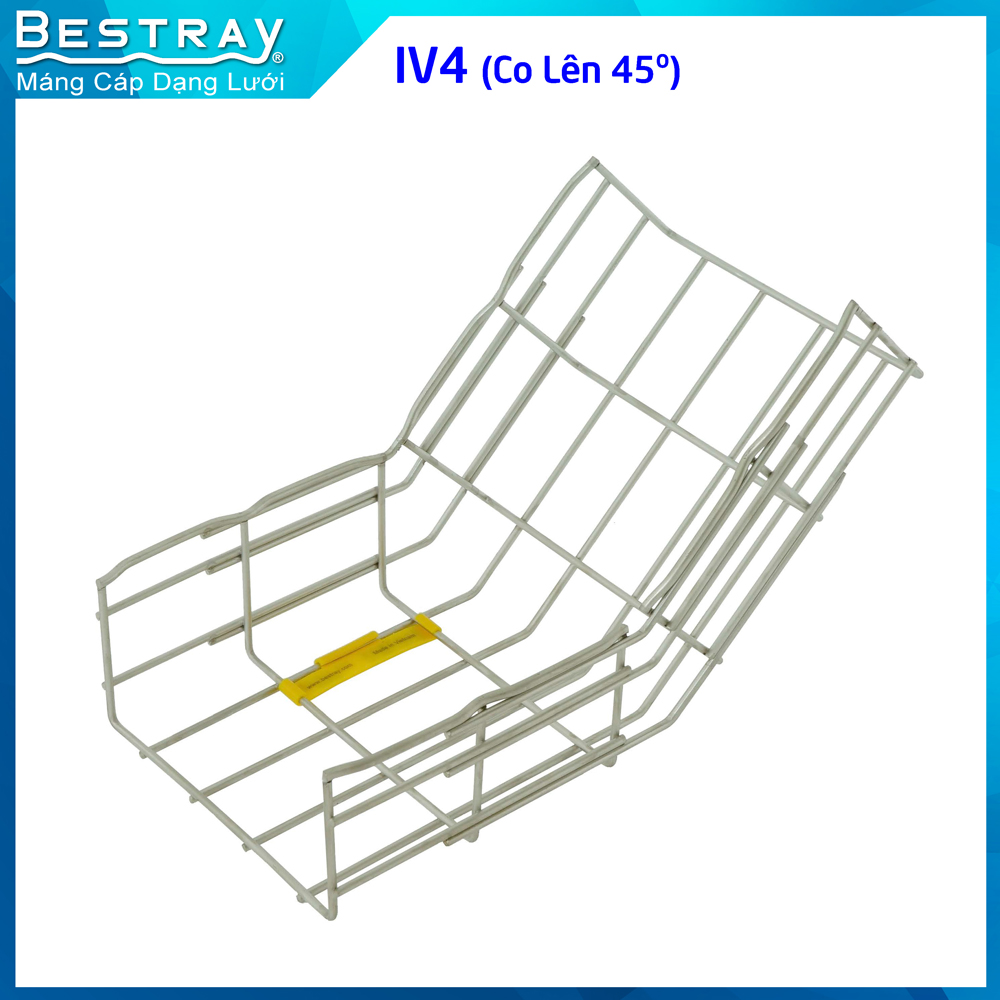

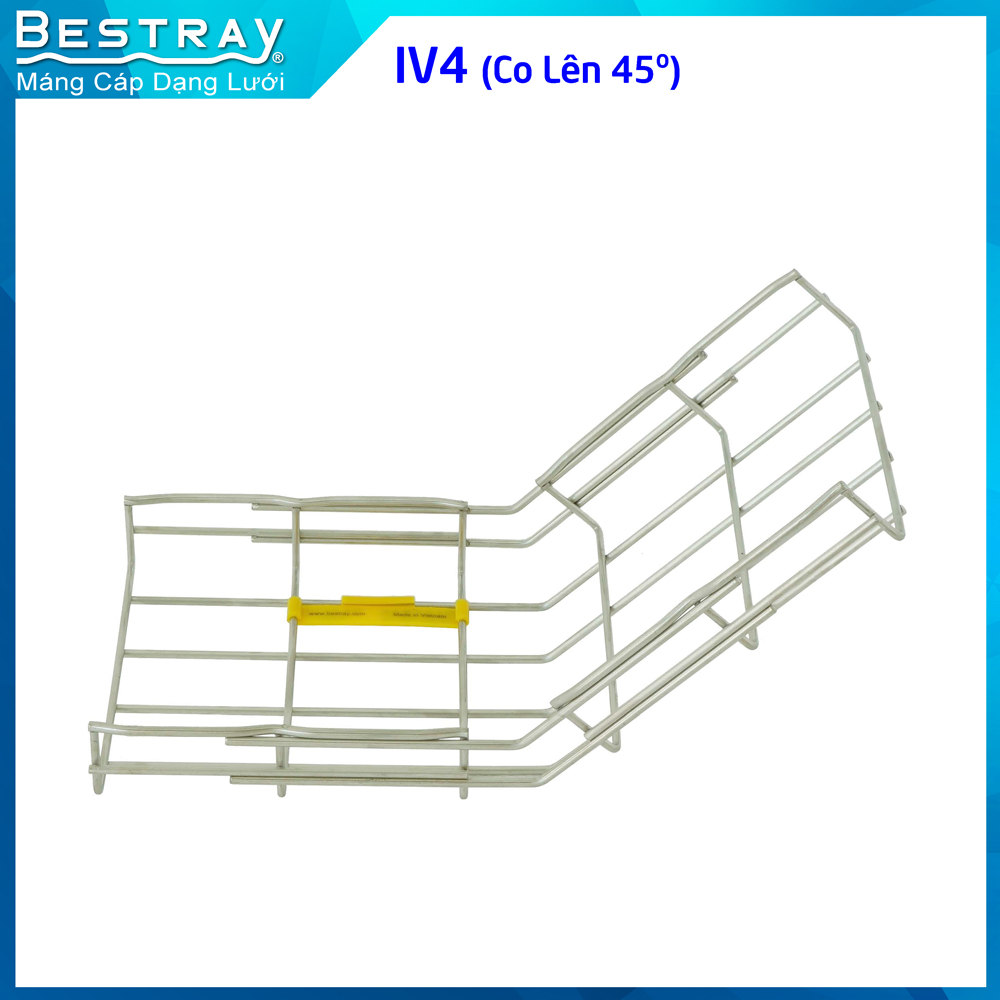

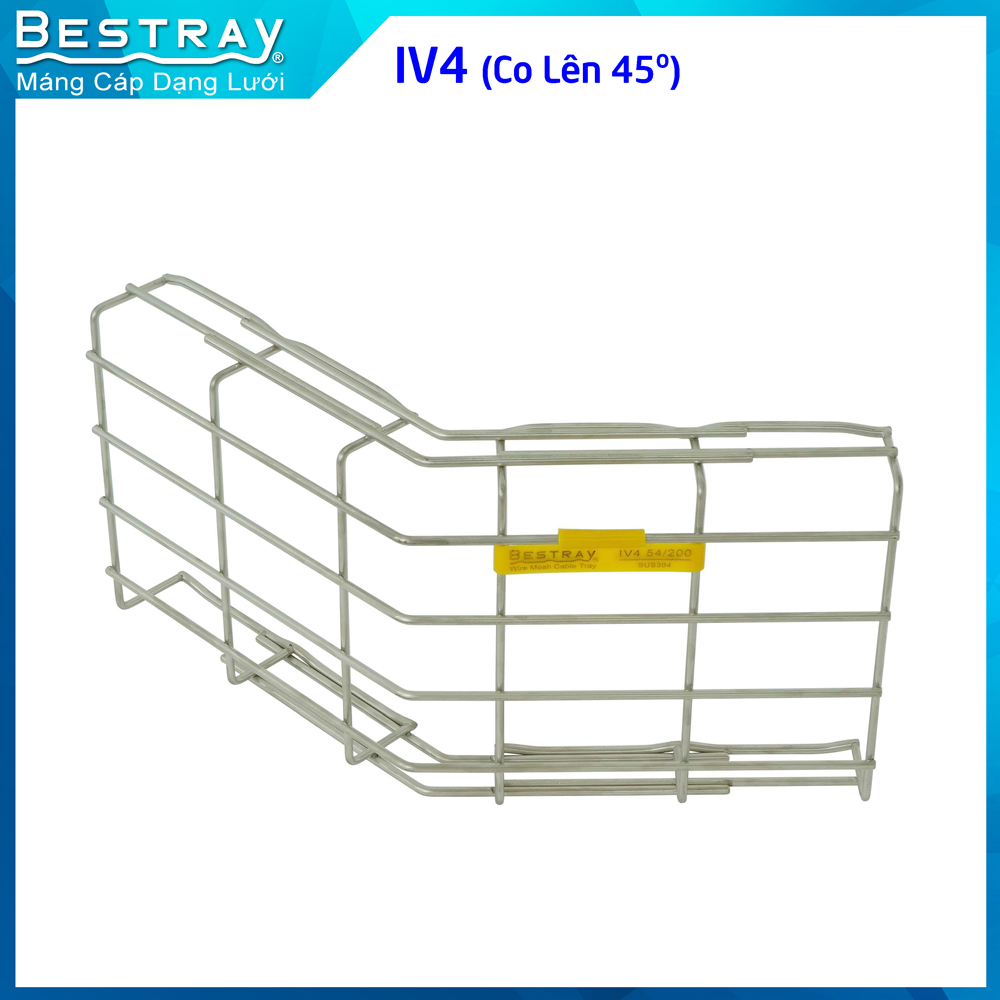

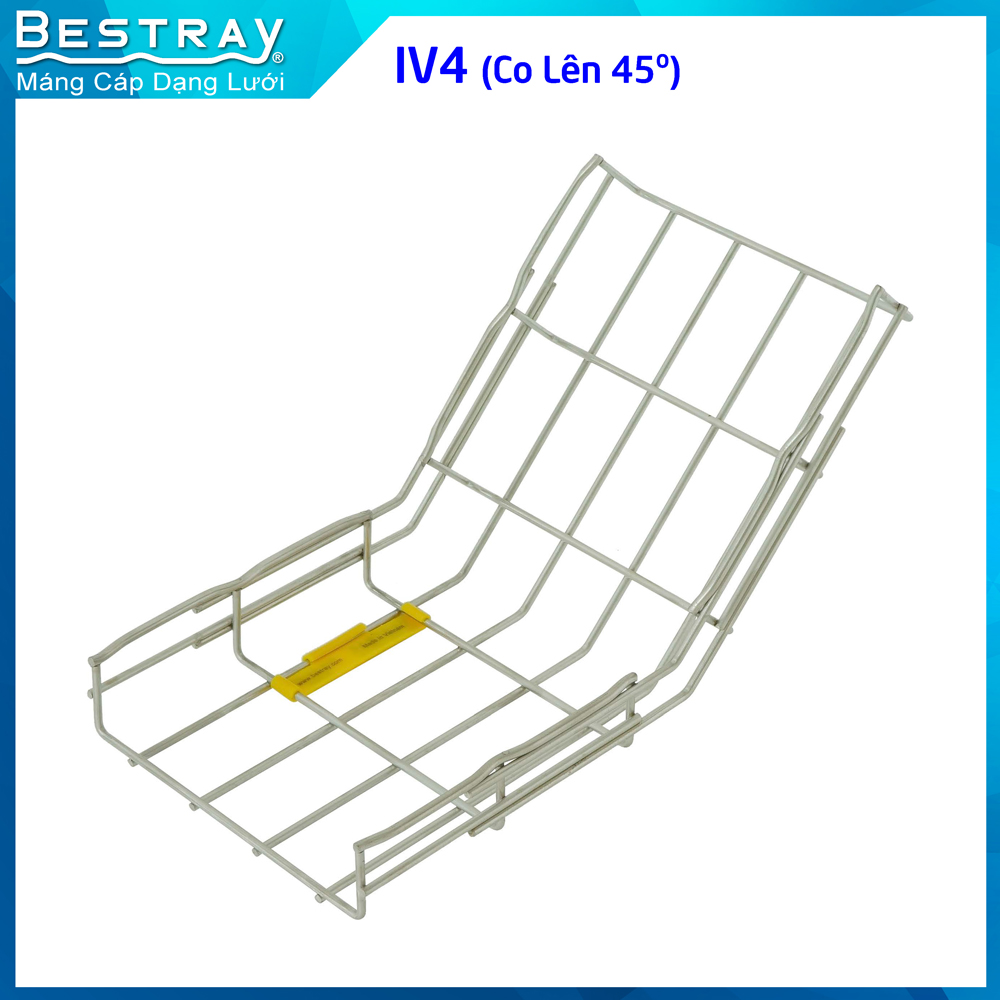

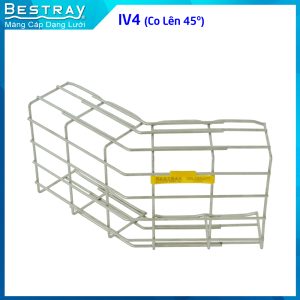

IV4 (Co Lên 45 Độ)

Thông tin nổi bật

Hỗ trợ đặt hàng: Vui lòng liên hệ chi nhánh

HCM: 180/7B, Tan Thoi 3 Hamlet, Hoc Mon Commune, Ho Chi Minh City, VietNam

Phân loại sản phẩm

Product Name L1 (mm) L2 (mm) Code
S4 HG EG PC
IV4 54/50 180 430 IV40505S4 IV40505HG IV40505EG IV40505PC
IV4 54/100 180 430 IV40510S4 IV40510HG IV40510HG IV40510PC
IV4 54/150 180 430 IV40515S4 IV40515HG IV40515HG IV40515PC
IV4 54/200 180 430 IV40520S4 IV40520HG IV40520HG IV40520PC
IV4 54/300 180 430 IV40530S4 IV40530HG IV40530HG IV40530PC
IV4 54/400 180 430 IV40540S4 IV40540HG IV40540HG IV40540PC
IV4 54/450 180 430 IV40545S4 IV40545HG IV40545HG IV40545PC
IV4 54/500 180 430 IV40550S4 IV40550HG IV40550HG IV40550PC
IV4 54/600 180 430 IV40560S4 IV40560HG IV40560HG IV40560PC

Product Name L1 (mm) L2 (mm) Code
S4 HG EG PC
IV4 105/100 180 430 IV41010S4 IV41010HG IV41010HG IV41010PC
IV4 105/150 180 430 IV41015S4 IV41015HG IV41015HG IV41015PC
IV4 105/200 180 430 IV41020S4 IV41020HG IV41020HG IV41020PC
IV4 105/300 180 430 IV41030S4 IV41030HG IV41030HG IV41030PC
IV4 105/400 180 430 IV41040S4 IV41040HG IV41040HG IV41040PC
IV4 105/450 180 430 IV41045S4 IV41045HG IV41045HG IV41045PC
IV4 105/500 180 430 IV41050S4 IV41050HG IV41050HG IV41050PC
IV4 105/600 180 430 IV41060S4 IV41060HG IV41060HG IV41060PC

S6 (Inox 316) S4 (Inox 304) HG (Mạ Kẽm Nhúng Nóng) DC (Mạ Kẽm Siêu Bền) PG (Tôn Mạ Kẽm) EG (Mạ Kẽm Xi) PC (Sơn Tĩnh Điện)

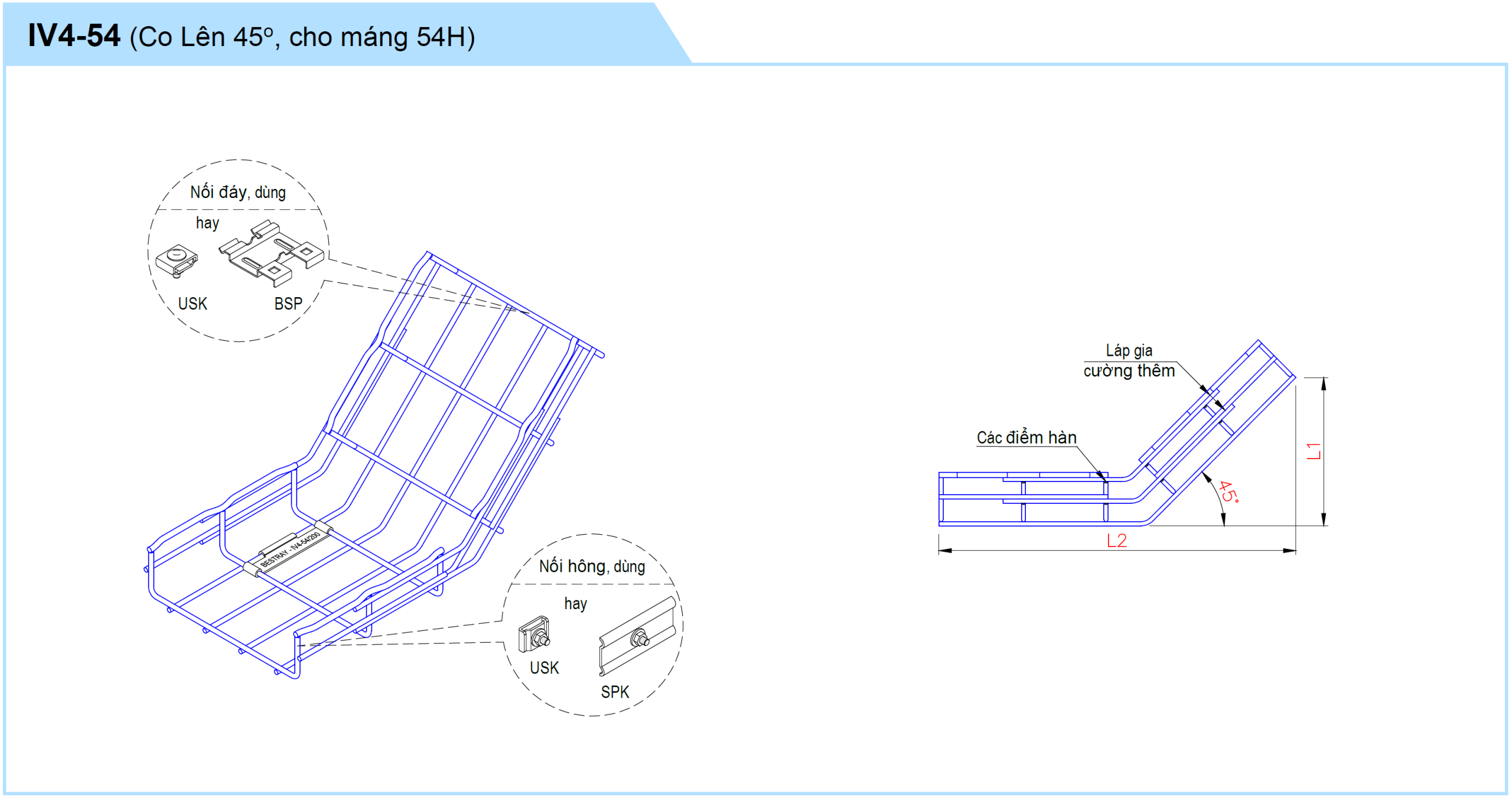

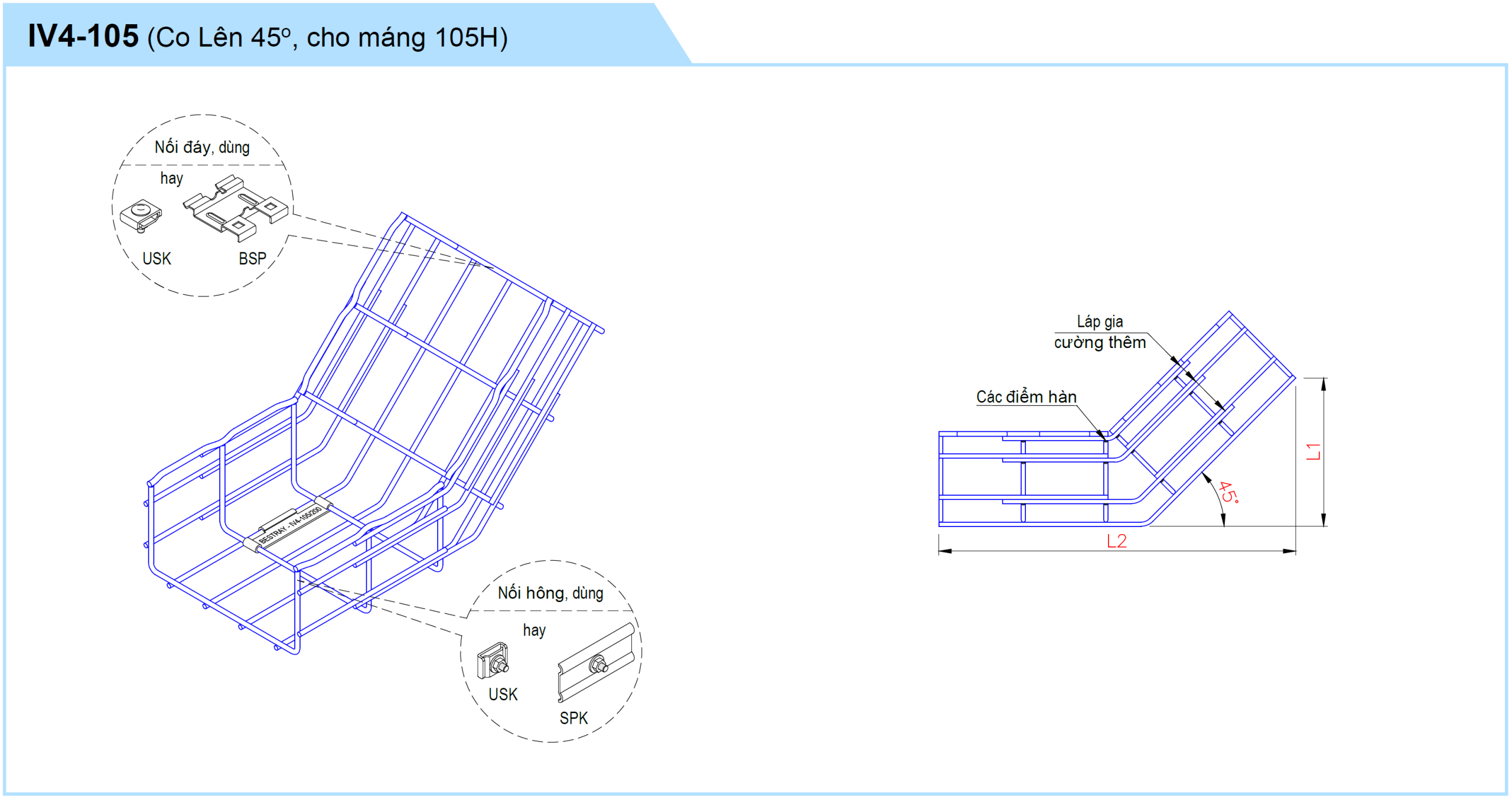

Bản vẽ

Video

[wpcc-iframe frameborder=”0″ src=”https://www.youtube.com/embed/4Gqxc4T_NNc” width=”640″ height=”360″ class=”note-video-clip”]

Diagram units

Qdop. (kN/m)
-
L (m)
-
